A comprehensive Revit Electrical Families Starter Pack designed for your projects. Includes pre-built outlets, switches, lighting fixtures, panels, and AV components—all optimized for clean visuals and full functionality. Comes with a complete example project file for immediate use. Perfect for architects, designers, and BIM professionals. Future expansions offer stylish upgrades without rebuying essentials.
$1.49
Simplify your electrical designs with this all-in-one Revit Electrical Families Starter Pack. Carefully crafted for architects, engineers, interior designers, and BIM professionals, this pack provides everything you need to build accurate, visually clean, and fully coordinated electrical plans—straight out of the box.
Skip the hassle of building from scratch. This package includes a fully developed example project file with complete layouts, wiring, and device placements, offering a direct template and reference for your next design.

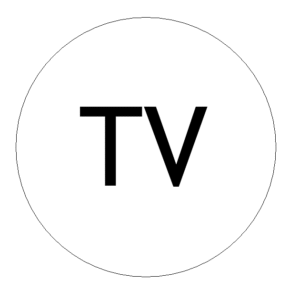

From wall-, ceiling-, and floor-hosted outlets to non-hosted AV ports—including data, phone, coaxial, and audio jacks—this pack ensures total coverage for any scenario.

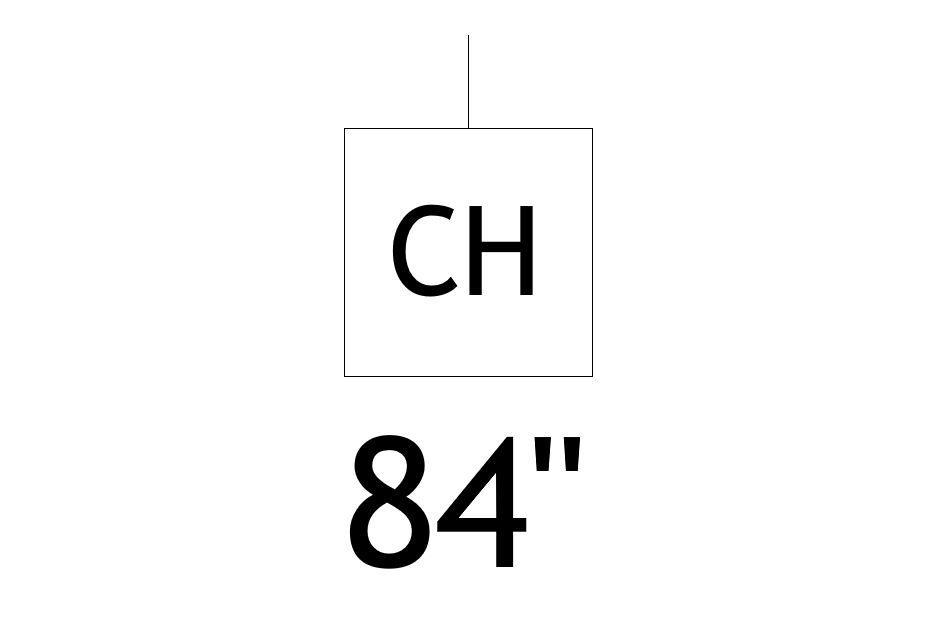

Go beyond the basics with doorbells, electrical panels, smoke detectors, security cameras, and recessed speakers—ideal for modern smart homes and media-ready spaces.
Tired of default switch limitations? This pack includes realistic, visually refined multi-gang switches, delivering clarity in both plan and render views.
Illuminate every corner with a thoughtfully curated set of lighting families:
Flush mounts, sconces, pendants, and chandeliers
Recessed (round/square), surface-mount, and track lights
Vanity lights, stairway night lights, and exhaust/ceiling fan combos
Under-cabinet strip lighting and landscape-ready exterior fixtures
Each model is functionally optimized and designed in a clean, neutral style, ready for immediate use or future customization.
The starter pack includes everything you need to begin, and upcoming expansion packs will offer modern, traditional, and contemporary style variants. No need to repurchase base components—just add what you need.
Have a request? The creator welcomes feedback and user-driven suggestions to ensure this kit continues to grow with your needs.
Save Time: Pre-built, ready-to-load families streamline your workflow
Comprehensive: Covers nearly every electrical device needed for design
Visually Accurate: Ideal for both technical drawings and presentation visuals
Modular: Expand later with stylish fixture packs—without redundant purchases
Hands-On Example File: Jumpstart your design with a complete project
User-Responsive: Shape future content through your input and requests
Bring clarity, speed, and flexibility to your next project with this professional-grade Revit electrical family pack. Whether you’re designing a single home or managing a portfolio of projects, this is the foundation your BIM workflow has been waiting for.
